Guangxi Liugong Group Co., Ltd
LiuGong ranks as the 20th largest construction equipment manufacturer in the world. In 2013, LiuGong had US$2 billion in sales revenue, selling more than 43,000 total units. The company is a leader in the design and production of wheel loaders. In 2013, LiuGong held nearly 12.4% of the global market share in wheel loaders and nearly 18.4% share domestically. It is a company of many firsts, including being the first company in China to begin manufacturing heavy equipment and the producer of China’s first modernized wheel loader in 1966. LiuGong has been integral in China’s modernization and infrastructure development.
LiuGong has a total of 24 manufacturing facilities worldwide. The company employs more than 12,000 people, including more than 1,000 engineers working in three world-class research and development facilities. In 2013, LiuGong invested more than US$ 85 million into its R&D program. LiuGong group now has 16 product lines including wheel loaders, excavators, bulldozers, motor graders, pavers, cold planers, skid steers, backhoe loaders, rollers, forklifts, truck mounted cranes, crawler cranes, pipe layers, mining dump trucks, dynamic compaction machines and concrete equipment. The company supports its global product lines with a rapidly growing network of more than 320 dealers across six continents in over 130 countries. The LiuGong dealer network provides over 2,650 sales outlets around the world. Supporting the dealer network are 9 regional offices with engineering, marketing and service support, coupled with 7 overseas parts depots located strategically throughout the world which ensure rapid replacement of parts and servicing of equipment.
LiuGong does not enter a market without dealers and support systems in place. Regional offices are currently located in Africa, Brazil, United Arab Emirates, Netherland, India, Poland, Singapore, Russia and the U.S. Further regional offices are continuously added as LiuGong grows. LiuGong places intense emphasis on quality, which is demonstrated by a commitment to Six Sigma methodology and compliance with ISO 9000 standards. As a result, after a rigorous review, LiuGong was awarded China’s National Quality Award. According to Off Highway Research, LiuGong is renowned for being one of very few Asian competitors producing equipment that exceeds international standards, and the firm’s designs and prices are often benchmarked by other domestic manufacturers.

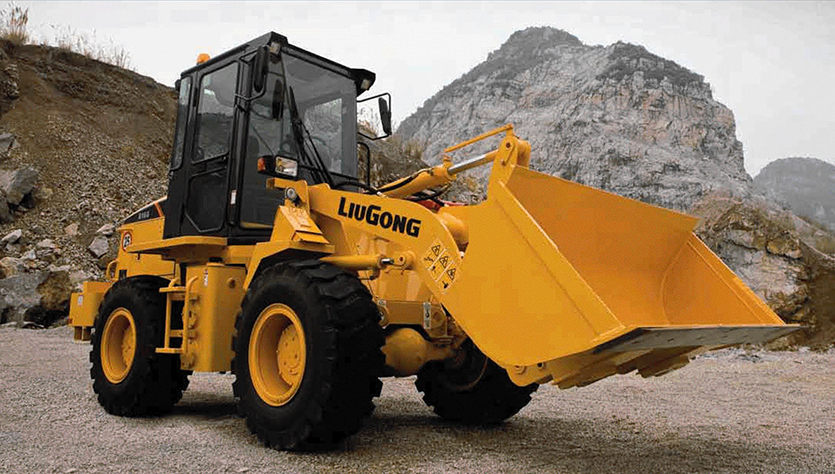

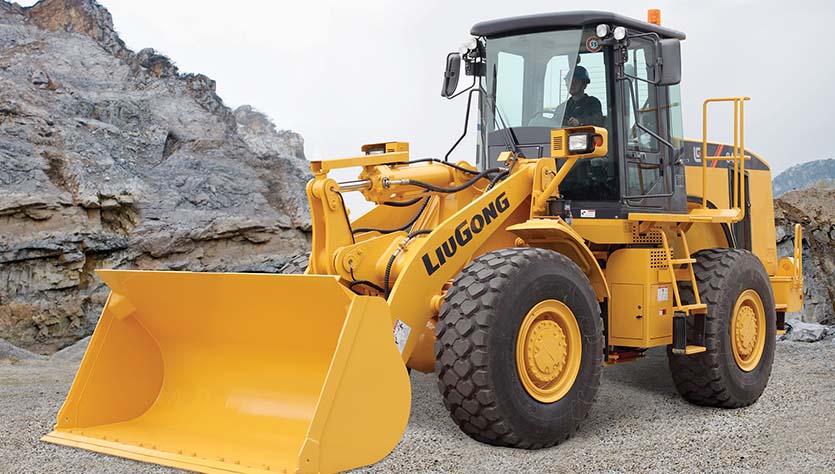

WHEEL LOADER
MODEL: ClG812C
| Engine |
Luochai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
0.5-0.65 m3 |
| Operating Weight |
3,800 kg |
| Net Power |
33 kW (44 hp) @ 2,400 rpm |
| Bucket Breakout Force |
40 KN |
Model: ClG816C
| Engine |
Luochai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
0.8-1.2 m3 |
| Operating Weight |
5,470 kg |
| Net Power |
50 kW (67 hp) @ 2,400 rpm |
| Bucket Breakout Force |
62 kN |
Model: 816G
| Engine |
Yanmar |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
0.8-1.2 m3 |
| Operating Weight |
5,600 kg |
| Net Power |
48 kW (64 hp) @ 2,400 rpm |
| Bucket Breakout Force |
46 kN |
Model: ClG818C
| Engine |
Luochai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
0.8-1.2 m3 |
| Operating Weight |
5,600 kg |
| Net Power |
55 kW (74 hp) @ 2,400 rpm |
| Bucket Breakout Force |
48 kN |
Model: ClG820C
| Engine |
Luochai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
0.8-1.2 m3 |
| Operating Weight |
6,400 kg |
| Net Power |
60 kW (80 hp) @ 2,400 rpm |
| Bucket Breakout Force |
56 kN |
Model: Zl30e
| Engine |
Yuchai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
1.5-3.0 m3 |
| Operating Weight |
10,500 kg |
| Net Power |
83 kW (111 hp) @ 2,200 rpm |
| Bucket Breakout Force |
94 kN |
Model: 835
| Engine |
Weichai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
1.5-3.0 m3 |
| Operating Weight |
10,600 kg |
| Net Power |
87 kW (117 hp) @ 2,200 rpm |
| Bucket Breakout Force |
94 kN |
Model: 835
| Engine |
Yuchai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
1.5-3.0 m3 |
| Operating Weight |
10,600 kg |
| Net Power |
83 kW (111 hp) @ 2,200 rpm |
| Bucket Breakout Force |
94 kN |
Model: 835
| Engine |
Cummins |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
1.5-3.0 m3 |
| Operating Weight |
11,500 kg |
| Net Power |
87.3 kW (117 hp) @ 2,200 rpm |
| Bucket Breakout Force |
94 kN |
Model: 835
| Engine |
Cummins |
| Emission Regulations |
Tier 3/Stage IIIA |
| Bucket Capacity Range |
1.5-3.0 m3 |
| Operating Weight |
13,200 kg |
| Net Power |
108 kW (145 hp) @ 2,200 rpm |
| Bucket Breakout Force |
94 kN |
Model: 835 TC
| Engine |
Cummins |
| Emission Regulations |
Tier 3/Stage IIIA |
| Bucket Capacity Range |
1.5-3.0 m3 |
| Operating Weight |
13,300 kg |
| Net Power |
108 kW (145 hp) @ 2,200 rpm |
| Bucket Breakout Force |
104 kN |
Model: 836
| Engine |
Weichai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
1.5-3.0 m3 |
| Operating Weight |
10,300 kg |
| Net Power |
82 kW (110 hp) @ 2,200 rpm |
| Bucket Breakout Force |
100 kN |
Model: Zl40B
| Engine |
Shangchai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
1.8-3.0 m3 |
| Operating Weight |
13,800 kg |
| Net Power |
112.5 kW (151 hp) @ 2,200 rpm |
| Bucket Breakout Force |
110 kN |
Model: 842
| Engine |
Shangchai |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
1.8-4.0 m3 |
| Operating Weight |
13,800 kg |
| Net Power |
112.5 kW (151 hp) @ 2,200 rpm |
| Bucket Breakout Force |
125 kN |
Model: 842
| Engine |
Cummins |
| Emission Regulations |
Tier 2/Stage II |
| Bucket Capacity Range |
1.8-4.0 m3 |
| Operating Weight |
13,700 kg |
| Net Power |
112.5 kW (151 hp) @ 2,200 rpm |
| Bucket Breakout Force |
125 kN |
Model: 842
| Engine |
Cummins |
| Emission Regulations |
Tier 3/Stage IIIA |
| Bucket Capacity Range |
1.8-3.0 m3 |
| Operating Weight |
15,000 kg |
| Net Power |
136.8 kW (183 hp) @ 2,200 rpm |
| Bucket Breakout Force |
136 kN |
MOTOR GRADERS
MODEL: 414
| Emission Regulations |
Tier 2/Stage II |
| Operating Weight |
12,400 kg |
| Rated Power |
118 kW (160 hp) @ 2,200 rpm |
| Net Power |
109 kW (148 hp) @ 2,200 rpm |
| Draw bar pull |
65 kN |
Model: 4165
| Emission Regulations |
Tier 2/Stage II |
| Operating Weight |
15,000 kg |
| Rated Power |
125 kW (170 hp) @ 2,200 rpm |
| Net Power |
113 kW (153 hp) @ 2,200 rpm |
| Draw bar pull |
82 kN |
Model: 4180
| Emission Regulations |
Tier 2/Stage II |
| Operating Weight |
15,500 kg |
| Rated Power |
142 kW (190 hp) @ 2,200 rpm |
| Net Power |
128 kW (172 hp) @ 2,200 rpm |
| Draw bar pull |
84 kN |
Model: 418
| Emission Regulations |
Tier 3/Stage IIIA |
| Operating Weight |
16,200 kg |
| Rated Power |
164 kW (220 hp) @ 2,200 rpm |
| Net Power |
147 kW (199 hp) @ 2,200 rpm |
| Draw bar pull |
86 kN |
Model: 4215
| Emission Regulations |
Tier 2/Stage II |
| Operating Weight |
16,500 kg |
| Rated Power |
160 kW (215 hp) @ 2,200 rpm |
| Net Power |
144 kW (195 hp) @ 2,200 rpm |
| Draw bar pull |
90 kN |
Model: 4230
| Emission Regulations |
Tier 2/Stage II |
| Operating Weight |
16,700 kg |
| Rated Power |
172 kW (230 hp) @ 2,200 rpm |
| Net Power |
155 kW (208 hp) @ 2,200 rpm |
| Draw bar pull |
91 kN |
Model: 425 (4Wd)
| Emission Regulations |
Tier 2/Stage II |
| Operating Weight |
19,500 kg |
| Rated Power |
179 kW (240 hp) @ 2,200 rpm |
| Net Power |
162 kW (217 hp) @ 2,200 rpm |
| Draw bar pull |
100 kN |
Model: 425 (6Wd)
| Emission Regulations |
Tier 2/Stage II |
| Operating Weight |
21,500 kg |
| Rated Power |
194 kW (260 hp) @ 2,200 rpm |
| Net Power |
175 kW (235 hp) @ 2,200 rpm |
| Draw bar pull |
145 kN |
TRUCK CRANE
MODEL: TC200
| Emission Regulations |
Euro III |
| Max. Rated Lifting Load |
20 t |
| Max. Lifting Height of Main Boom |
33 m |
| Max. Travel Speed |
80 km/h |
Model: TC250-4
| Emission Regulations |
Euro III |
| Max. Rated Lifting Load |
25 t |
| Max. Lifting Height of Main Boom |
34 m |
| Max. Travel Speed |
75 km/h |
Model: TC250
| Emission Regulations |
Euro III |
| Max. Rated Lifting Load |
25 t |
| Max. Lifting Height of Main Boom |
40 m |
| Max. Travel Speed |
75 km/h |
Model: TC500
| Emission Regulations |
Euro III |
| Max. Rated Lifting Load |
50 t |
| Max. Lifting Height of Main Boom |
44 m |
| Max. Travel Speed |
80 km/h |
CRAWLER CRANES
MODEL: CC800
| Emission Regulations |
CSII |
| Engine Rated Power |
199 kW @ 1,900 rpm |
| Max rated lifting load |
80 t |
| Main Boom Length |
13-58 |
Model: CC1000
| Emission Regulations |
CSII |
| Engine Rated Power |
224 kW @ 2,100 rpm |
| Max rated lifting load |
100 t |
| Main Boom Length |
13-73 |
Model: QUY160
| Emission Regulations |
CSII |
| Engine Rated Power |
242 kW @ 2,100 rpm |
| Max rated lifting load |
160 t |
| Main Boom Length |
15-84 |
Model: QUY55
| Emission Regulations |
CSII |
| Engine Rated Power |
145 kW @ 1,900 rpm |
| Max rated lifting load |
55 t |
| Main Boom Length |
9-54 |
SKID STEER LOADERS
MODEL: 355A
| Emission Regulations |
Tier 2/Stage II |
| Rated Load |
680 kg |
| Net Power |
35.2 kW (47.2 hp) @ 2,600 rpm |
Model: 365A
| Emission Regulations |
Tier 2/Stage II |
| Rated Load |
795 kg |
| Net Power |
47.8 kW (64 hp) @ 2,400 rpm |
Model: 365A
| Emission Regulations |
Tier 3/Stage IIIA |
| Rated Load |
795 kg |
| Net Power |
47.8 kW (64 hp) @ 2,400 rpm |
Model: 375A
| Emission Regulations |
Tier 3/Stage IIIA |
| Rated Load |
954 kg |
| Net Power |
57.3 kW (76.8 hp) @ 2,400 rpm |
Model: 385A
| Emission Regulations |
Tier 3/Stage IIIA |
| Rated Load |
1,045 kg |
| Net Power |
57.3 kW (76.8 hp) @ 2,400 rpm |
Model: 365B
| Emission Regulations |
Tier 3/Stage IIIA |
| Rated Load |
795 kg |
| Net Power |
33.5 kW (44.8 hp) @ 2,600 rpm |
Model: 375B
| Emission Regulations |
Tier 3/Stage IIIA |
| Rated Load |
865 kg |
| Net Power |
40.4 kW (54 hp) @ 2,600 rpm |
Model: 385B
| Emission Regulations |
Tier 3/Stage IIIA |
| Rated Load |
1,045 kg |
| Net Power |
57.3 kW (76.8 hp) @ 2,400 rpm |
TRAILER PUMP
MODEL: HBT8015110e
| Engine Rated Power, |
110 kW |
| Max.concrete output |
80/45 L/H |
| Max.pumping height |
230 m |
| Max.horizontal pumping distance |
1900 m |
Model: HBT801590e
| Engine Rated Power, |
90 kW |
| Max.concrete output |
80/45 L/H |
| Max.pumping height |
230 m |
| Max.horizontal pumping distance |
1900 m |
Model: HBT6013132e
| Engine Rated Power, |
132 kW |
| Max.concrete output |
60/38 L/H |
| Max.pumping height |
200 m |
| Max.horizontal pumping distance |
800 m |
Model: HBT8013132e
| Engine Rated Power, |
132 kW |
| Max.concrete output |
80/45 L/H |
| Max.pumping height |
200 m |
| Max.horizontal pumping distance |
800 m |
Model: HBT8515158e
| Engine Rated Power, |
158 kW |
| Max.concrete output |
85/50 L/H |
| Max.pumping height |
230 m |
| Max.horizontal pumping distance |
900 m |
Model: HBT9018195e
| Engine Rated Power, |
195 kW |
| Max.concrete output |
90/55 L/H |
| Max.pumping height |
280 m |
| Max.horizontal pumping distance |
1100 m |
LINE PUMP
MODEL: HBC11012158e
| Engine Rated Power |
158 kW |
| Max.pumping height |
140 m |
| Max.horizontal pumping distance |
400 m |
| Emission Regulations |
China III/China IV |
Model: HBC11014195e
| Engine Rated Power |
195 kW |
| Max.pumping height |
180 m |
| Max.horizontal pumping distance |
500 m |
| Emission Regulations |
China III/China IV |
Model: HBC8013132e
| Engine Rated Power |
132 kW |
| Max.pumping height |
160 m |
| Max.horizontal pumping distance |
450 m |
| Emission Regulations |
China III/China IV |
Model: HBC10016195e
| Engine Rated Power |
195 kW |
| Max.pumping height |
220 m |
| Max.horizontal pumping distance |
600 m |
| Emission Regulations |
China III/China IV |
Model: HBC9018195e
| Engine Rated Power |
195 kW |
| Max.pumping height |
250 m |
| Max.horizontal pumping distance |
700 m |
| Emission Regulations |
China III/China IV |
Model: HBC8015110e
| Engine Rated Power |
110 kW |
| Max.pumping height |
200 m |
| Max.horizontal pumping distance |
550 m |
| Emission Regulations |
China III/China IV |
BOOM PUMP
MODEL: Hdl5430THB5254d
| Max.concrete output |
170 m3/h |
| Max. vertical reach |
52 m |
| Emission Regulations |
Euro III |
Model: Hdl5431THB5664e
| Max.concrete output |
170 m3/h |
| Max. vertical reach |
56 m |
| Emission Regulations |
Euro IV |
Model: Hdl5160THB2432C
| Max.concrete output |
110/65 m3/h |
| Max. vertical reach |
23.1 m |
| Emission Regulations |
China III/China IV |
Model: Hdl5270THB3743C
| Max.concrete output |
120 m3/h |
| Max. vertical reach |
36.8 m |
| Emission Regulations |
Euro III |
Model: Hdl5330THB4653d
| Max.concrete output |
170/110 m3/h |
| Max. vertical reach |
45.8 m |
| Emission Regulations |
Euro III |
TRUCK MIXER
MODEL: ClGTM308e
| Engine Rated Power |
247 kW |
| Drum Volume |
13 m3 |
| Drum Loading Capacity |
8 m3 |
| Emission Regulations |
China III/China IV |
Model: ClGTM309e
| Engine Rated Power |
247 kW |
| Drum Volume |
15 m3 |
| Drum Loading Capacity |
9 m3 |
| Emission Regulations |
China III/China IV |
Model: ClGTM310e
| Engine Rated Power |
247 kW |
| Drum Volume |
16 m3 |
| Drum Loading Capacity |
10 m3 |
| Emission Regulations |
China III/China IV |
Model: ClGTM312e
| Engine Rated Power |
247 kW |
| Drum Volume |
19 m3 |
| Drum Loading Capacity |
12 m3 |
| Emission Regulations |
China III/China IV |
Model: ClGTM412e
| Engine Rated Power |
247 kW |
| Drum Volume |
19 m3 |
| Drum Loading Capacity |
12 m3 |
| Emission Regulations |
China III/China IV |
BATCHING PLANT
MODEL: HZS25A
| Productivity |
25 m3/h |
| Mixer Capacity |
500 L |
| Aggregate Batcher |
800 L |
MODEL: HZS35A
| Productivity |
35 m3/h |
| Mixer Capacity |
750 L |
| Aggregate Batcher |
1,200 L |
MODEL: HZS50A
| Productivity |
50 m3/h |
| Mixer Capacity |
1,000 L |
| Aggregate Batcher |
1,600 L |
MODEL: HZS75A
| Productivity |
75 m3/h |
| Mixer Capacity |
1,500 L |
| Aggregate Batcher |
2,400 L |
MODEL: HZS60A
| Productivity |
60 m3/h |
| Mixer Capacity |
1,000 L |
| Aggregate Batcher |
1,600 L |
MODEL: HZS90A
| Productivity |
HZS90A |
| Mixer Capacity |
1,500 L |
| Aggregate Batcher |
2,400 L |
MODEL: HZS120A
| Productivity |
120 m3/h |
| Mixer Capacity |
2,000 L |
| Aggregate Batcher |
3,200 L |
MODEL: HZS180A
| Productivity |
180 m3/h |
| Mixer Capacity |
3,000 L |
| Aggregate Batcher |
4,800 L |
